System Owner ManualMagnetic Stray FieldMagnet 117/11 US/R


Magnet 117/11 US/R
 Streufeld_117-11US-R

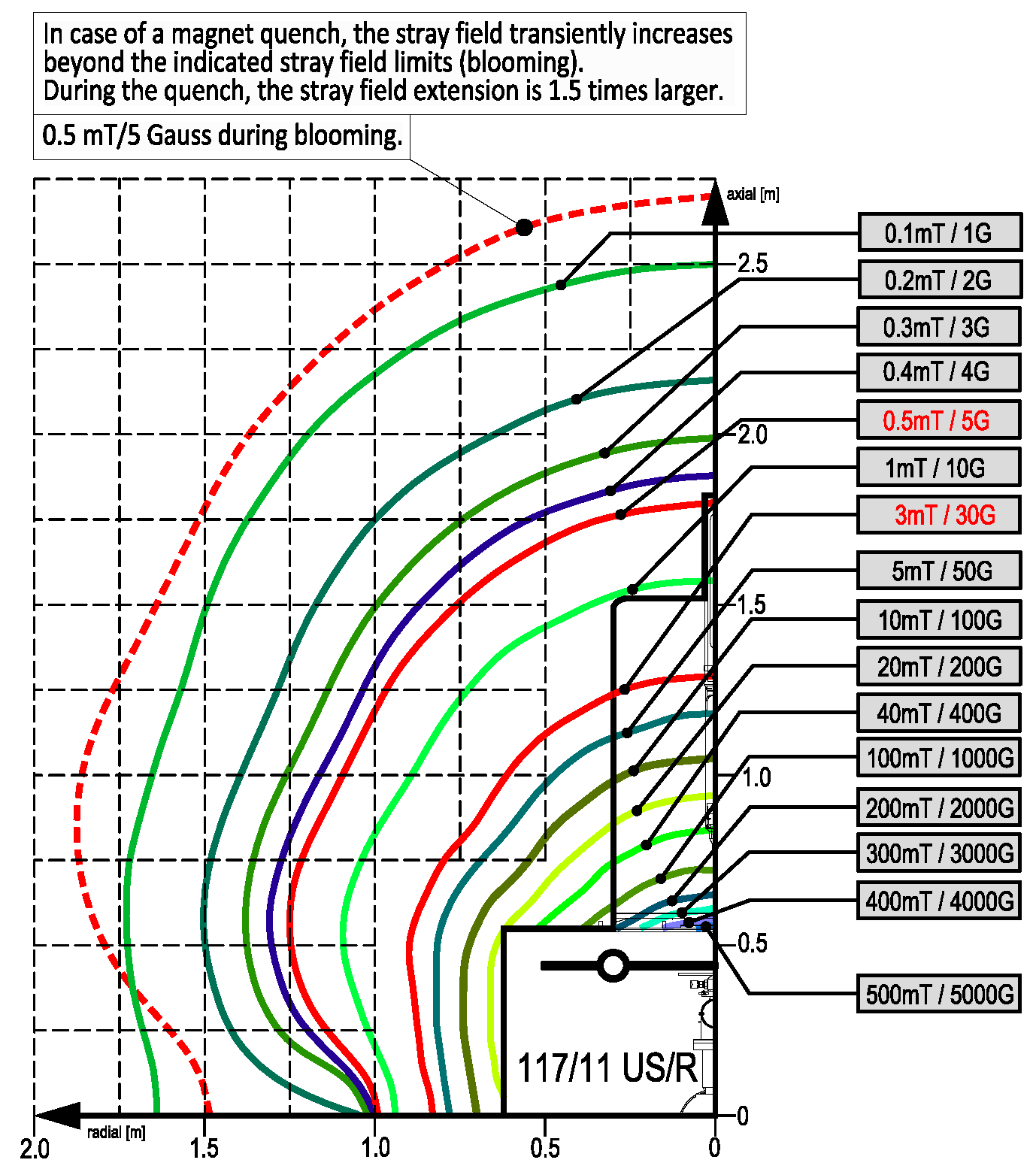

Contours of given magnetic field strengths of the stray field outside the magnet bore. The stray field is rotation-symmetric to the z-axis. The origin of the diagram is referenced to the magnet iso-center.
 Figure 18: Magnet 117/11 USR. Contours of given magnetic field strengths of the stray field close to the magnet and inside the magnet bore. The stray field is rotation-symmetric to the z-axis. The origin of the diagram is referenced to the magnet iso-center. (ivclhuv1.png.png)
Contours of given magnetic field strengths of the stray field close to the magnet and inside the magnet bore. The stray field is rotation-symmetric to the z-axis. The origin of the diagram is referenced to the magnet iso-center.
