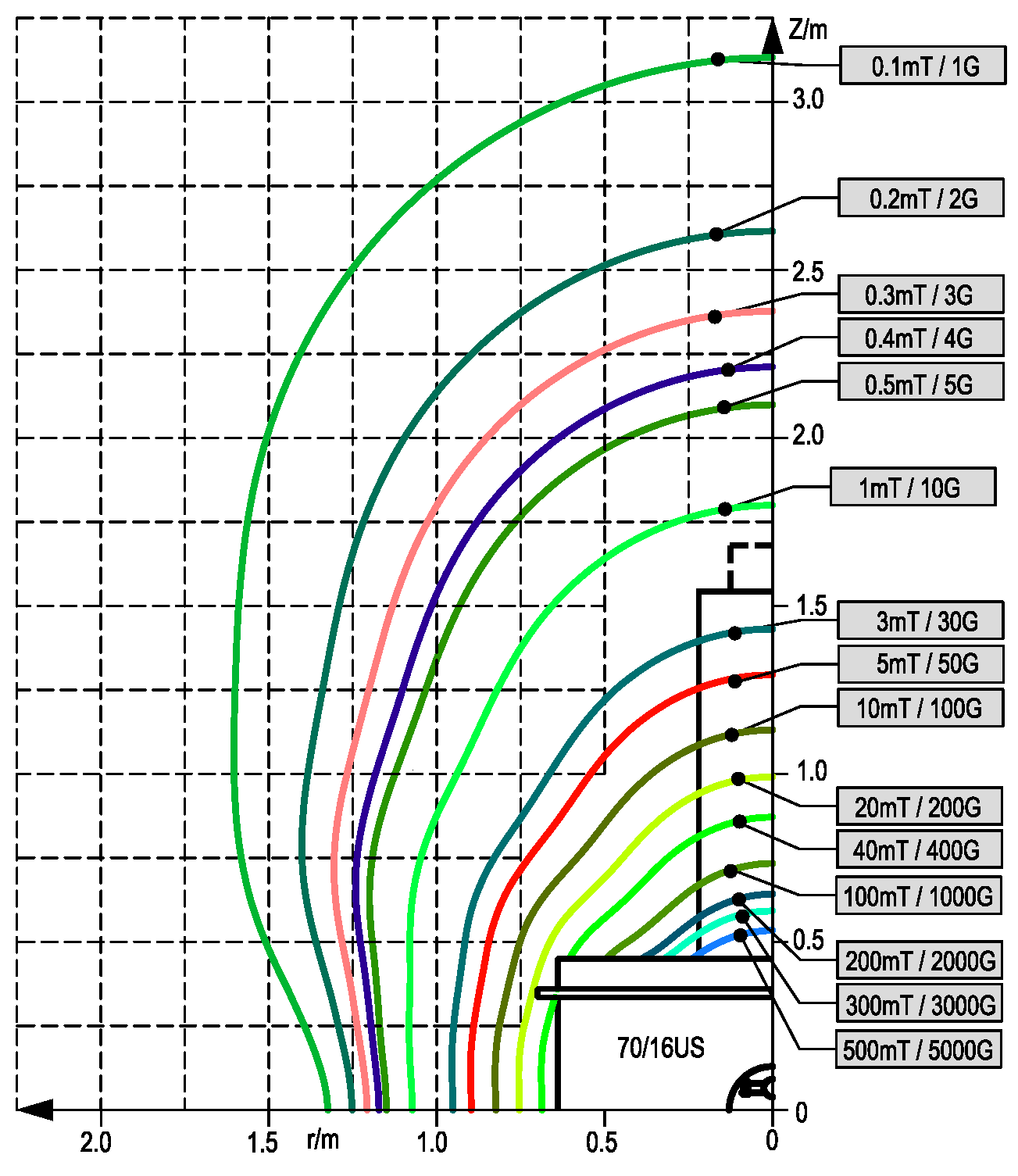

Contours of given magnetic field strengths of the stray field outside and inside the magnet bore. The stray field is rotation-symmetric to the z-axis. The origin of the diagram is referenced to the magnet iso-center.

Contours of given magnetic field strengths of the stray field close to the magnet and inside the magnet bore. The stray field is rotation-symmetric to the z-axis. The origin of the diagram is referenced to the magnet iso-center.
