System Owner ManualMagnetic Stray FieldMagnet 47/40 USR V2


Magnet 47/40 USR V2
 Streufeld 47-40 USR V2

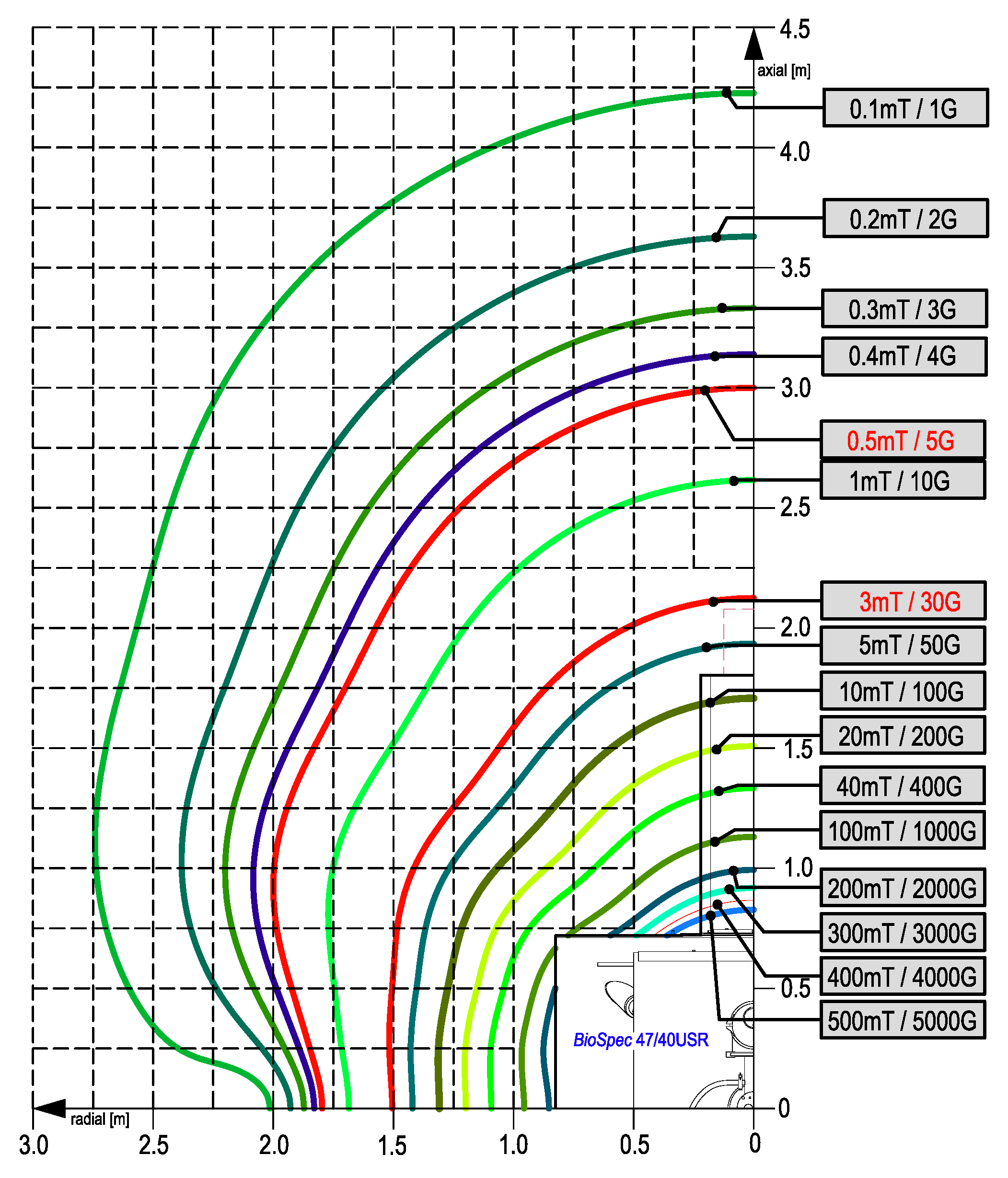

Magnet 47/40 USR V2. Contours of the magnetic field strengths of the stray field outside the magnet bore. The stray field is rotation-symmetric to the z-axis. The origin of the diagram is referenced to the magnet iso-center.

 Contours Magnet 47/40 USR V2

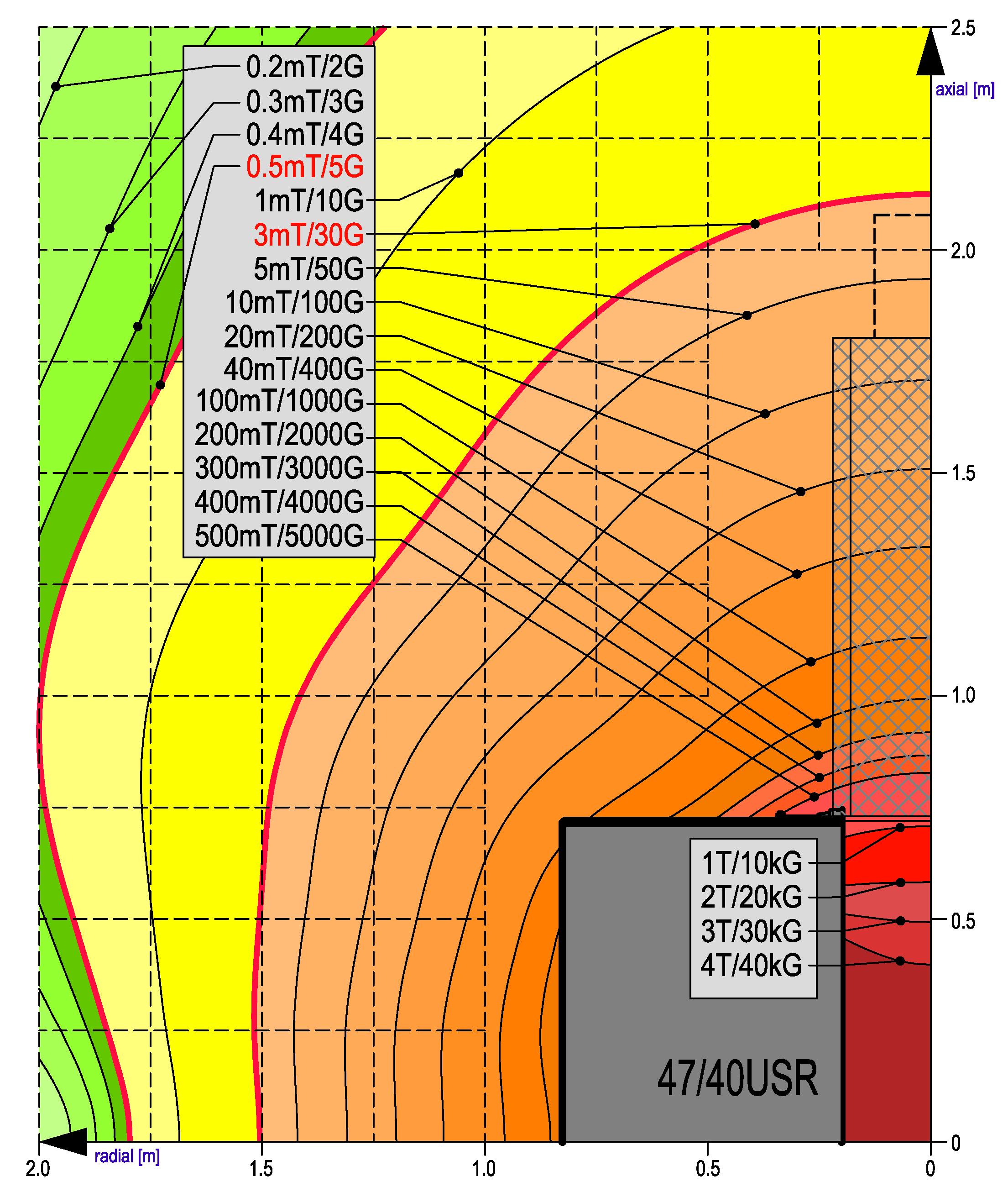

Magnet 47/40 USR V2. Contours of the magnetic field strengths of the stray field close to the magnet and inside the magnet bore. The stray field is rotation-symmetric to the z-axis. The origin of the diagram is referenced to the magnet iso-center.
