Field Replaceable Units
The MMACs have the following Field Replaceable Units (FRU) that can be ordered using the part numbers given below.

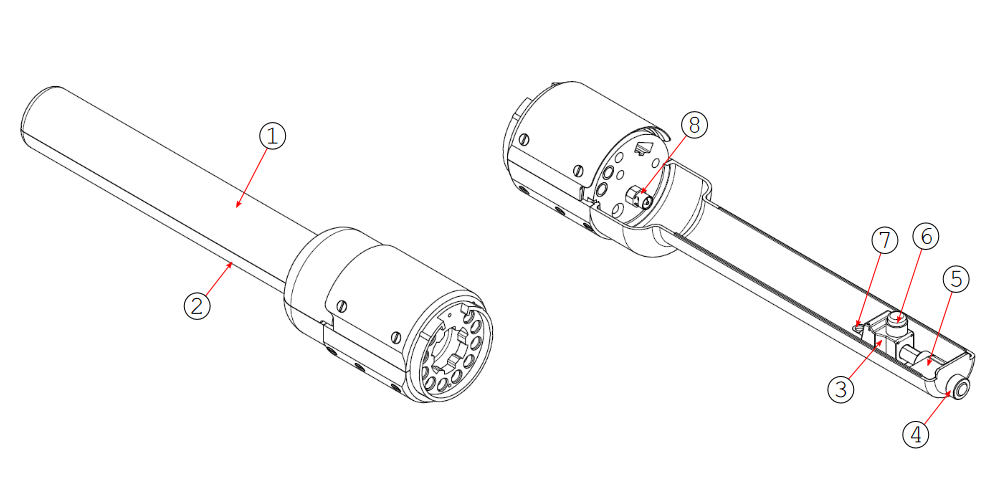

Field Replaceable Units. Drawing shows mouse cassette as an example.

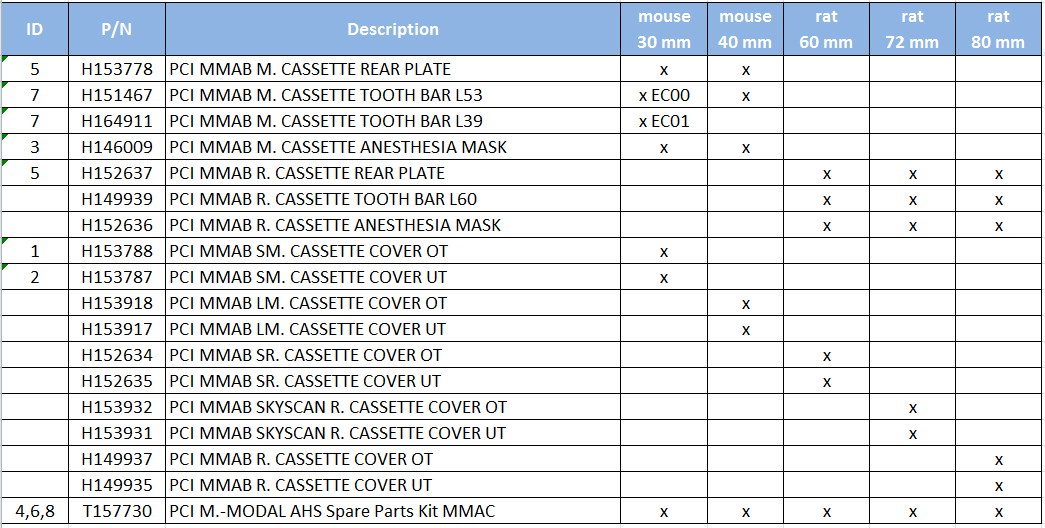

Field Replaceable Units of MMACs.

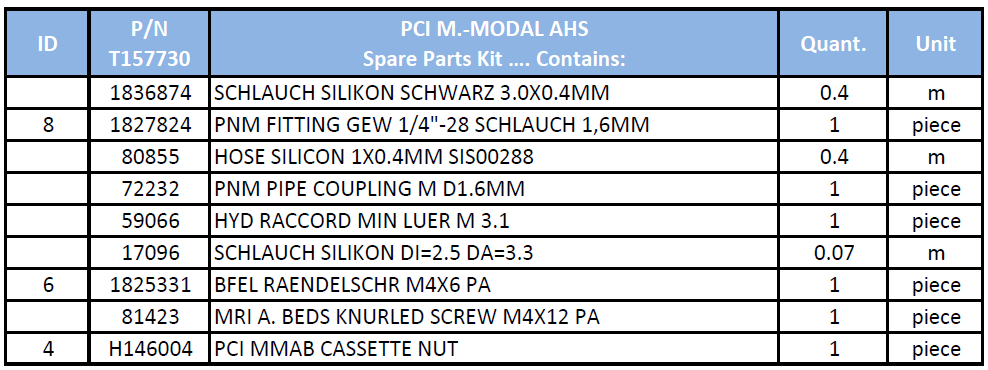

Bill of Material of Spare Part Kit P/N T157730.
Dedicated items for ICON
Clamp for 30 mm RF Coils (see RF Coils):
- ▪
- Clamp P/N T159315 with screw P/N 1830789
- ▪
- 2x mounting screws P/N 4185 for clamp
Tuning rod connector (see RF Coils):
- ▪
- Tuning rod connector P/N H159557 with 2 connecting screws P/N 12587
