User Interface Panel

The User Interface Panel at the side allows easy access for users and service to interface to components partly located within the RF shielded ATS cover. The connections are RF filtered where applicable. Please note that no conducting wires are to be put through the spare pipes described below in order not to violate the RF shielding.

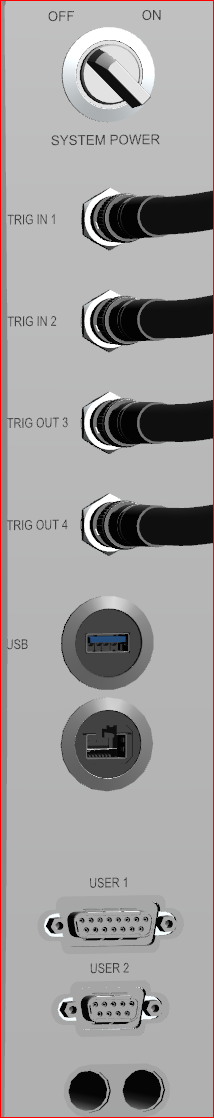

ATS User Interface. (*) To program the trigger, see ParaVision manual.

	SYSTEM POWER OFF/ON	Switches instrument ON/OFF.
	TRIG IN 1	Optional connector (BNC female) to trigger the instrument (*). This is an alternative input to the cable AM IN 1 located at the user console that typically connects to the SA Instruments ERT Control/Gating Module, port GATE. Do not connect different sources at the same time to TRIG IN 1 and AM IN 1.
	TRIG IN 2	Optional connector (BNC female) to trigger the instrument (*). This is an alternative input to the cable AM IN 2 located at the user console that typically connects to the SA Instruments ERT Control/Gating Module, port RESP GATE. Do not connect different sources at the same time to TRIG IN 2 and AM IN 2.
	TRIG OUT 3	Optional connector (BNC female) to trigger a third party device by the instrument (*).
	TRIG OUT 4	Optional connector (BNC female) to trigger a third party device by the instrument (*).
	USB	USB connection to embedded HMI PC (Bruker Service).
	ETH	Ethernet access to the spectrometer network (Bruker Service).
	USER 1	15-pin D-SUB RF filtered 1:1 connection to the D-SUB connector located on the ATS table used for CryoProbe Control (option).
	USER 2	Spare 9-pin D-SUB RF filtered 1:1 connection to the D-SUB connector located on the ATS table.
	Pipes for Hoses	Spare pipes for customized hoses or fibre optics. Typically fibre optic to SA Instruments ERT Monitoring & Gating module and Waste Anesthesia Gas (WAG) suction hose. Do not use conducting wires.
