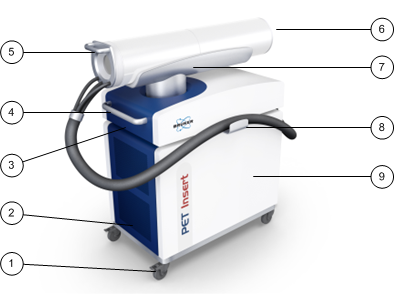

1

wheeler with breaks

6

RF coil position inlet

2

interface plate

7

rotational support shell

3

rotation lock / unlock of the shell support

8

cable support

4

handle to move the trolley

9

Electronic cabinet / trolley

5

handle to lift and pull/push the PET Insert





Use the lock/unlock button to rotate and lock the shell support

Close (DOWN) and open (UP) the break of the wheels of the trolley

Secure the PET Insert with the safety belt when stored and/or moved with the trolley

Inflate (valve parallel) / deflate (valve orthogonal) the pneumatic fixation (Pneumofix)

Remove the RF coil position inlet for PET optimized RF coils
