Cradle Interface “Water”
This type of open animal cradle has as interface a connector type “water” so that the animal can be stabilized in body temperature using a warm water heating cover (option).
Prerequisites
▪
Body Temperature Conditioning System (option) installed.

The water based temperature conditioning system allows to circulate warm water through the heating cover    . Heating covers are available in two sized, for mice and rats, respectively.

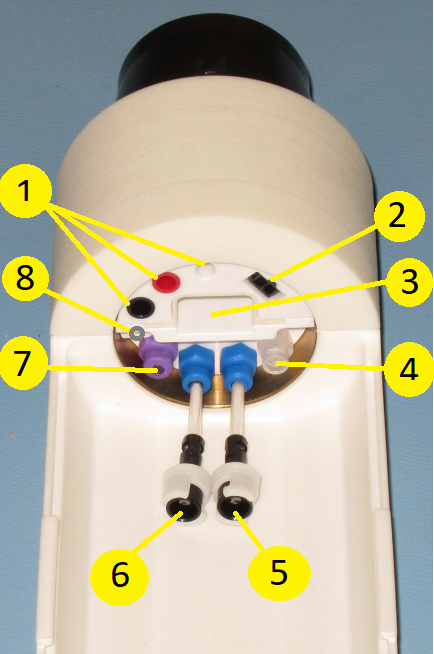

 Description_Connector-Water_labelled
Cradle Connector version “Water”. The warm water heating cover is to be connected to (5) and (6).

Details on “where to connect what” can be found in the table below.

Interface of the Cradle Connector towards the animal side.
No.
Function
Part that can be connected
1
ECG connectors
SA Instruments Inc. ECG connectors.
2
Temperature Sensor
SA Instruments Inc. Temperature Sensor.
3
Opening
Opening of 17 x 10 mm (W x H) for customized hoses/cables put through.
4
Anesthesia Suction (WAG)
Hose to remove WAG from anesthesia mask.
5
Warm water IN or OUT.
To connect Warming Blanket (no need to distinguish IN and OUT).
6
Warm water OUT or IN.
To connect Warming Blanket (no need to distinguish IN and OUT).
7
Anesthesia Supply
Anesthesia supply hose.
8
Respiratory Pad
To connect SA Instruments respiratory pad with Luer male.
