PET InsertSystem Owner ManualTechnical DataDimensions and Weight


Dimensions and Weight

 SOM: Dimensions

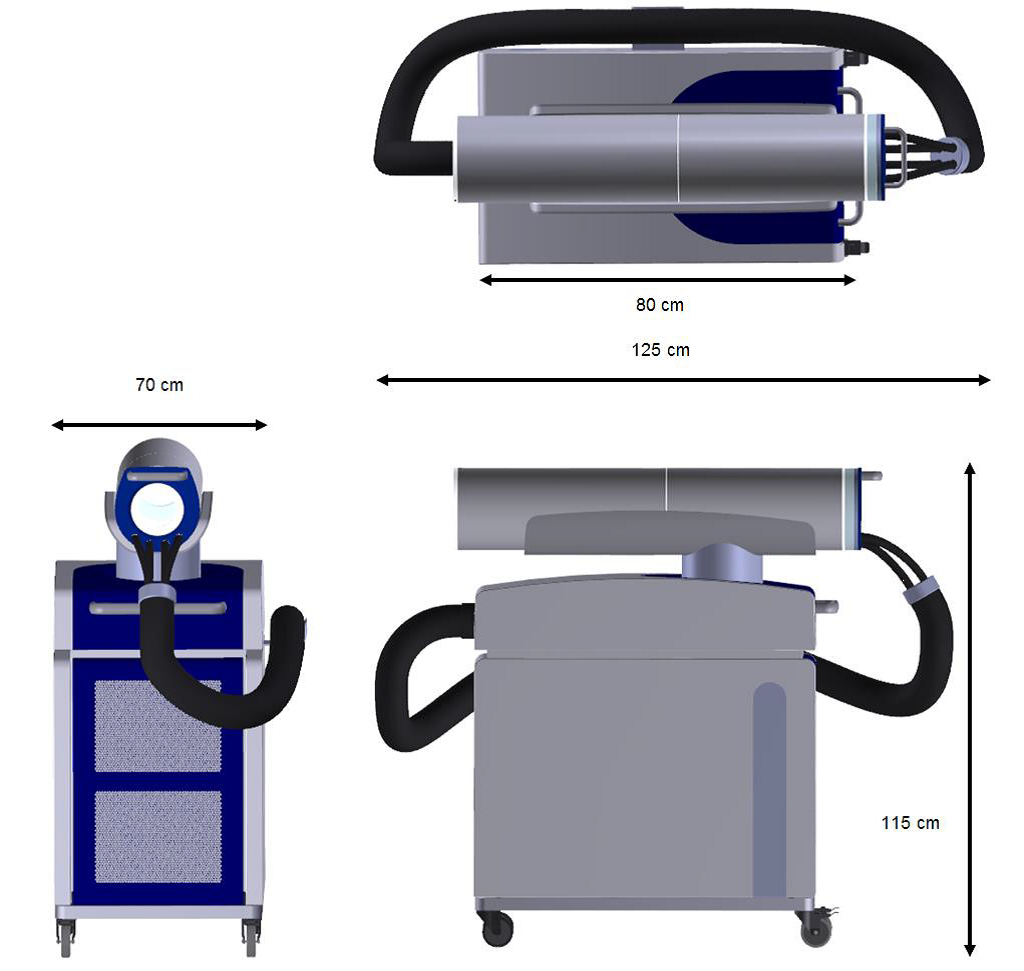

Photo shows PET Insert 198. PET Insert 103 is identical but detector tube dimensions (see table below).


Dimensions and Weight PET Insert 198.
Data
Value
Unit
Outer Diameter of Detector Tube
198
mm
Inner Diameter of Detector Tube
114
mm
Length of Detector Tube
for BioSpec 94/30 USR

tbd

cm
Weight of Detector Tube
(small variation depending on 1,2, or 3 ring configuration and magnet length)
ca. 15
kg
Weight of Electronic Cabinet
75
kg
Dimensions and Weight PET Insert 103.
Data
Value
Unit
Outer Diameter of Detector Tube
103
mm
Inner Diameter of Detector Tube
60
mm
Length of Detector Tube
for BioSpec 70/20 USR

87

cm
Weight of Detector Tube
(small variation depending on 1,2, or 3 ring configuration and magnet length)
ca. 7
kg
Weight of Electronic Cabinet
75
kg
