Where to connect what
Details on “where to connect what” can be found in the table below.

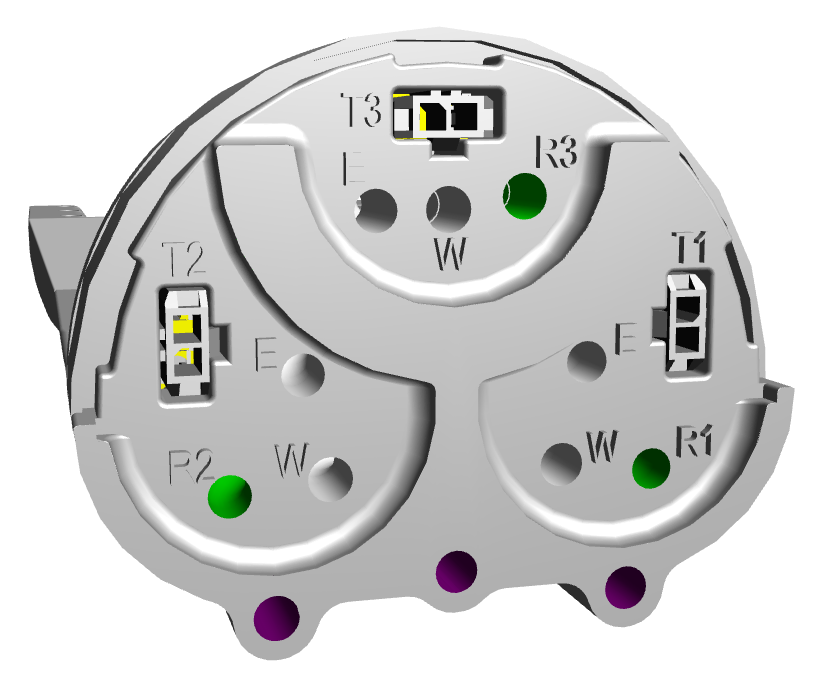

 MMPF 3 Mice Cradle Interface
Label
Function
Part to be connected
W
Warm air IN
To connect warm air Diffusors.
E
Warm air OUT
Suction holes for air. Nothing to be connected.
T1, T2, T3
Temperature Sensors
To connect SA Instruments Temperature Sensors.
R1, R2, R3
Respiratory Pads
To connect SA Instruments Respiratory Pads with Luer male.
