Electric Emergency

In case of an electric emergency, for example electric shock or short circuit, proceed as follows to put the instrument out of operation:
1.
Turn the rotary switch (1) at the Remote Electronic Switch counter-clockwise in OFF position. The instrument is powered off immediately.
2.
Turn the Mains Disconnect at the Line Power Distributor (LPD) counter-clockwise to OFF to disconnect the instrument from mains.

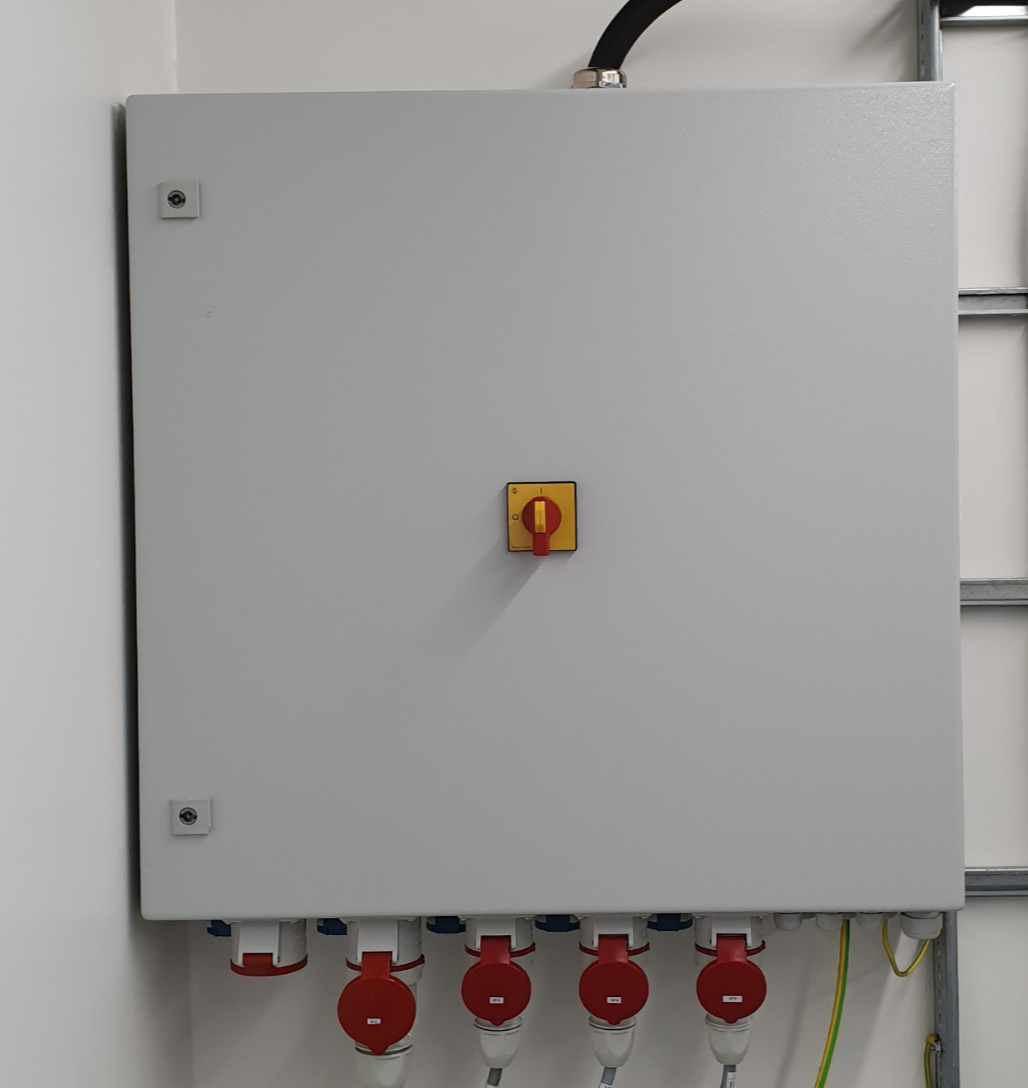

 LPD_MainsDisconnect
Line Power Distributor with Mains Disconnect.




NOTICE
The magnetic field and the supervision of the magnet remains ON when switching the MR Instrument OFF.
1.
The Electronic ON/OFF Switch (Remote Electronic Switch) switches off all electronics but the magnetic field, the water cooling circuit of the magnet and the magnet supervision.
2.
The Mains Disconnect at the Line Power Distrubutor (LPD) disconnects the instrument from mains. However, the strong magnetic field remains.
•
In case of emergency with regard to the strong magnetic field, use the Magnet Emergency Quench Button.


Further information on the different ON/OFF switches, see chapter Safety.
