System Owner ManualMagnetic Stray FieldMagnet 94/30 USR


Magnet 94/30 USR
 Streufeld 94-30

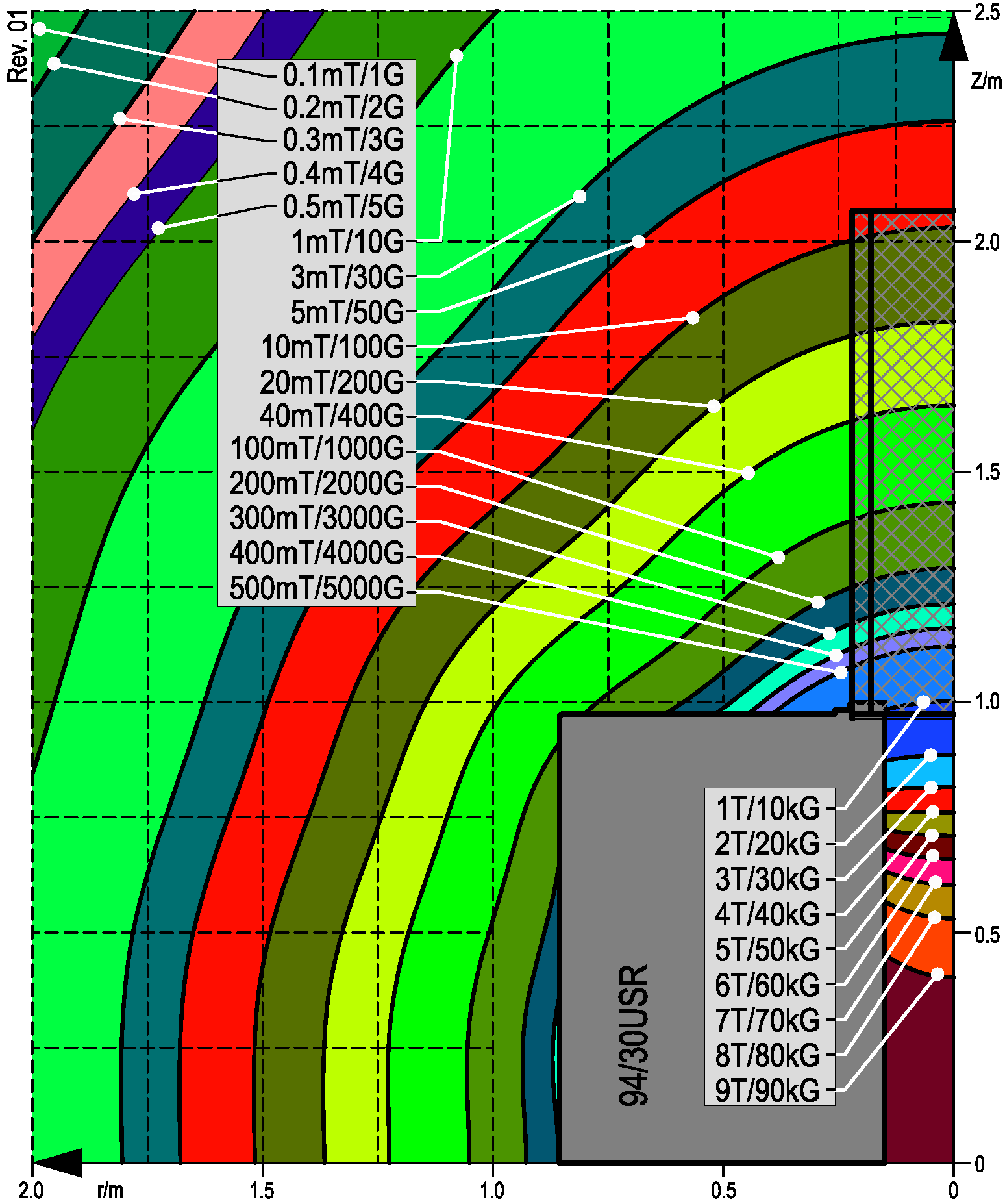

Contours of given magnetic field strengths of the stray field outside the magnet bore. The stray field is rotation-symmetric to the z-axis. The origin of the diagram is referenced to the magnet iso-center.

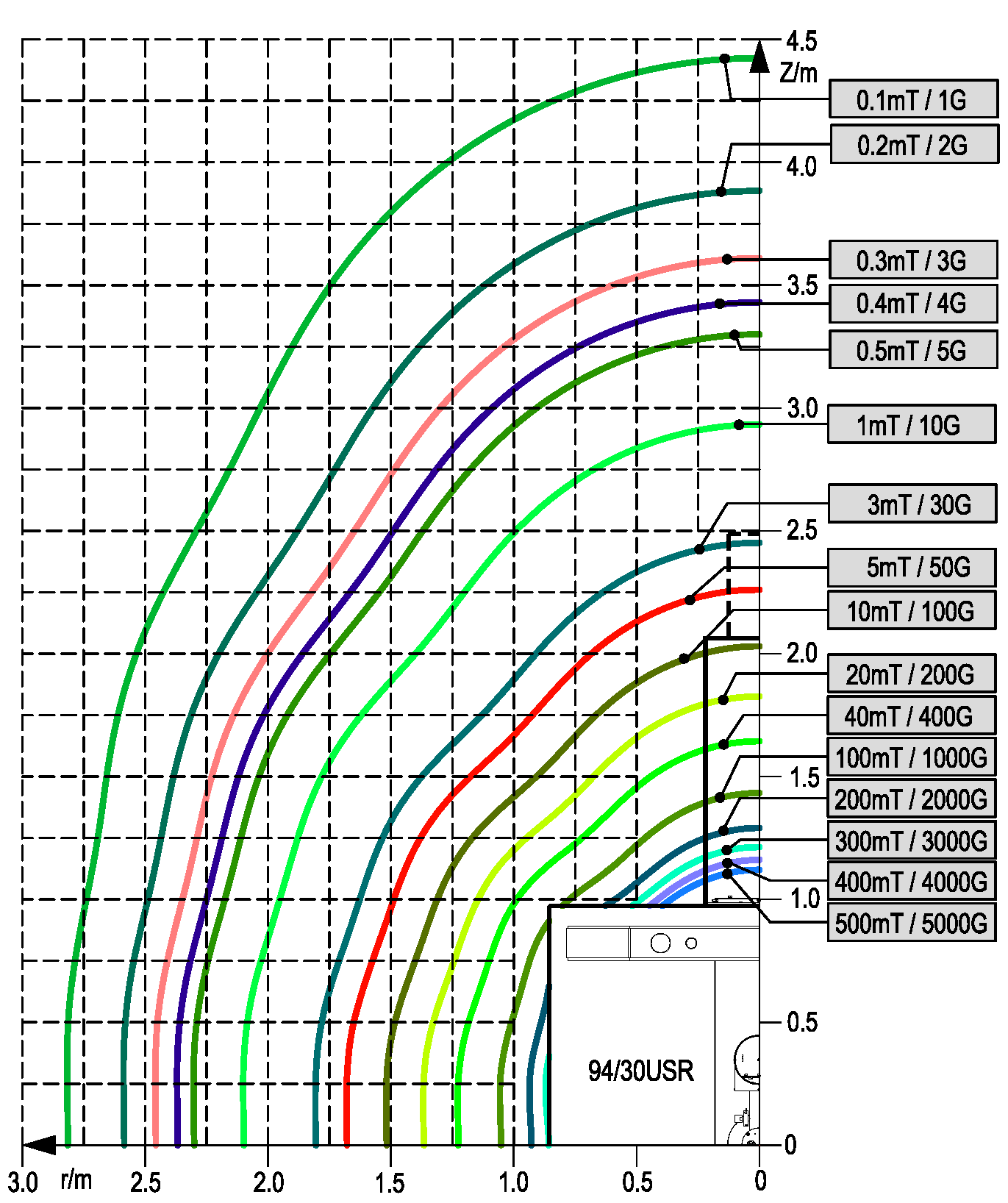

 Figure 16: Magnet 94/30 USR. Contours of given magnetic field strengths of the stray field close to the magnet and inside the magnet bore. The stray field is rotation-symmetric to the z-axis. The origin of the diagram is referenced to the magnet iso-center. (i5nuj6n.png.png)
Figure 16: Magnet 94/30 USR. Contours of given magnetic field strengths of the stray field close to the magnet and inside the magnet bore. The stray field is rotation-symmetric to the z-axis. The origin of the diagram is referenced to the magnet iso-center.
