PET Interface Plate
The PET interface plate is located in the bottom part of the rear side panel of the PET Inline Module. It is used to establish all connections between the module and the infrastructure. User interaction is only required when these connections are changed, i.e. when new trigger equipment shall be used to control gated PET acquisitions or the PET power mains switch is to be used for independent power OFF/ON the PET Inline Module e.g. for service purposes.

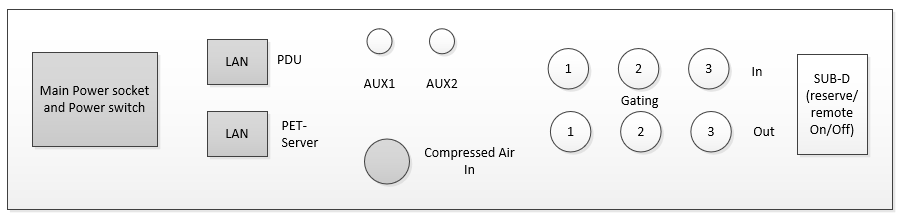

PET Interface Plate.
| | |
| | Mains power supply and power switch |
| | 100 MBit/s connection to power distribution unit |
| | 10 Gbit/s connection to PET RECO Server |
| | |
| | |
| | |
| | Connection from HMI (human machine interface) unit for triggering |
| | Connection for trigger signals to the MR instrument |
| | |
| |

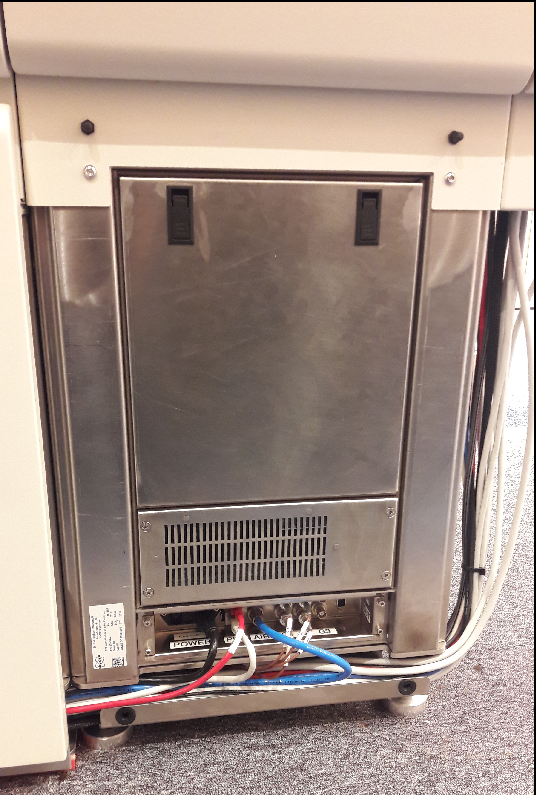

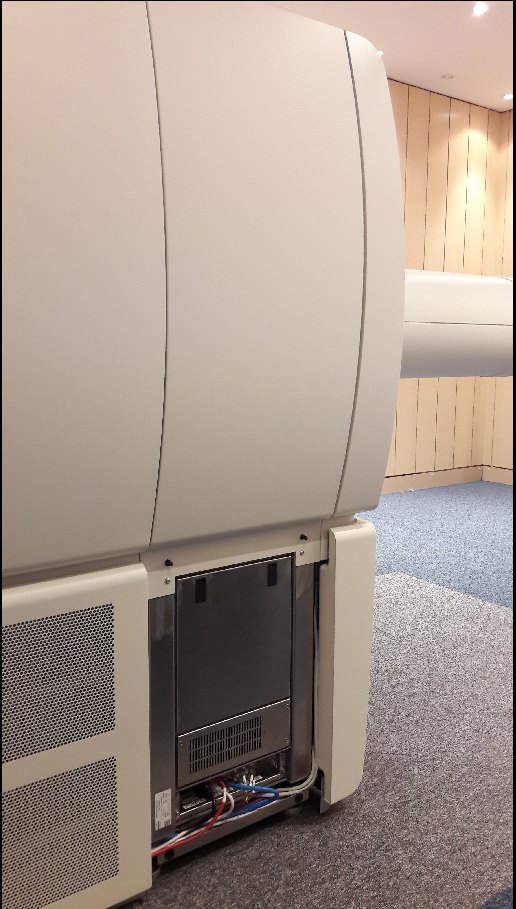

Bottom left cover of PET Inline Module removed to access the interface plate. | … opened. To open, gently pull the clipped cover. |
| | |
Danger of injury from electrical shock. A life threatening shock may result when the housing is opened and work performed while connected to the line power. - 1.
- Only electrically qualified personnel should open the housing and carry out work.
- •
- Switch the device OFF.
- •
- Disconnect from line power.
- •
- Prevent reconnection.
|
