QA Setup

For QA use

• animal base cradle rat or mouse with TIP SUC.
• Select the corresponding cubic phantom for 1H and position as follows:

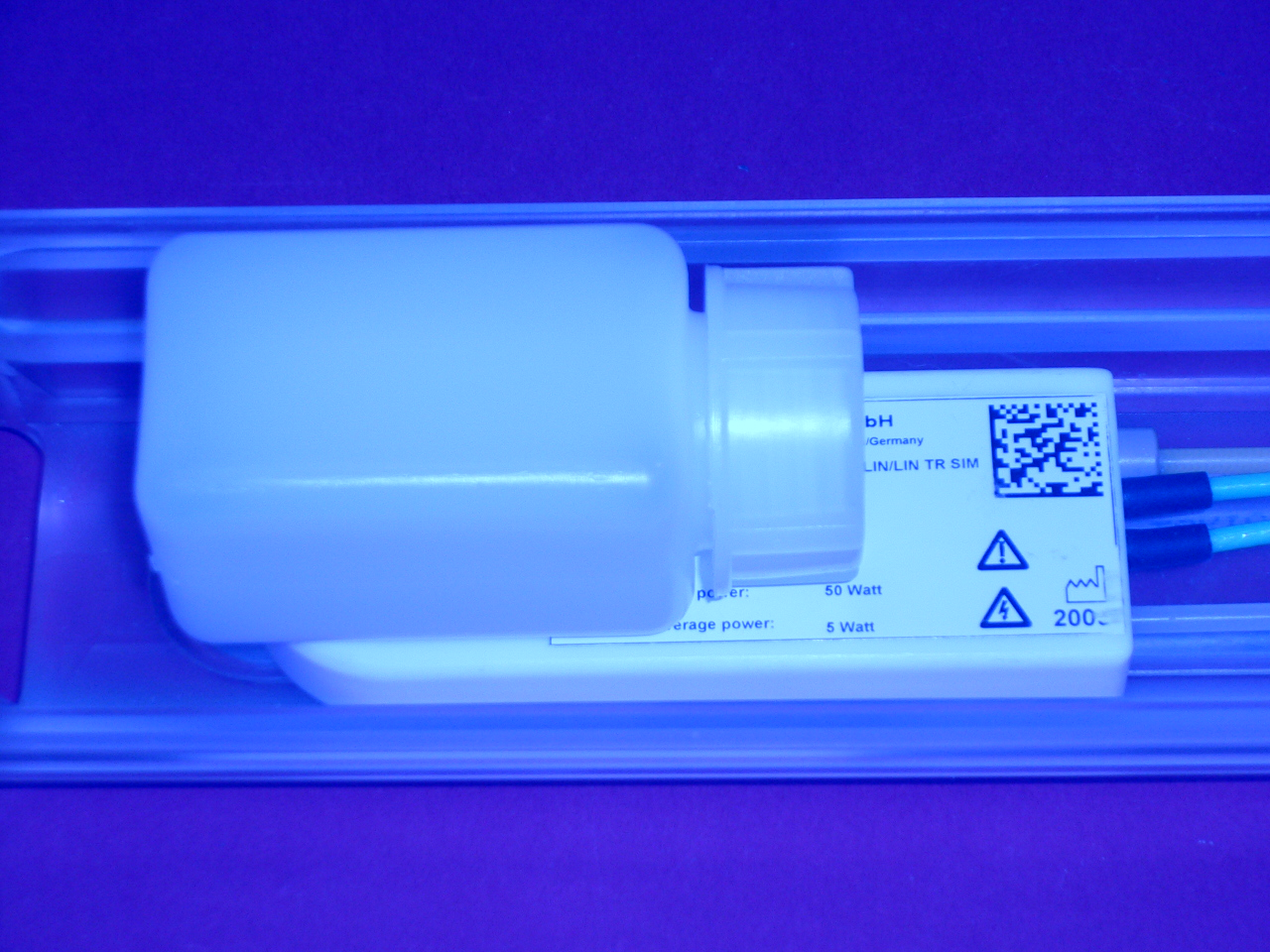

  QA phantom setup: make sure to place the phantom on the sample side of the coil.

• Select the corresponding 15 ml falcon tube phantom for 2H and position accordingly above the coil circuit.

The QA phantom typically represents a loaded condition of the MRI RF Coil.

NOTICE

Phantom expiration date

The phantom should not be used after the expiration date in order to obtain reproducible results.
