Overview

The MR instrument consists of the following functional components:

  • Magnet and shims to generate a strong and homogeneous spin polarization.
  • Gradient fields to decode the spatial distribution of the spins.
  • Radio frequency RF Coils to trigger and detect the signals.
  • Scanner control electronics, high power electronics and chiller.
  • Animal handling accessories, i.e. anesthesia, animal beds and supervision devices.



These components are located at different sites within the laboratory, refer to the figure below.

  • the Magnet Room: Magnet, gradients, RF Coils and animal handling devices
  • the Operator Area: Acquisition control and data evaluation workplace
  • the Technical Room: Scanner control and high power electronics, chiller

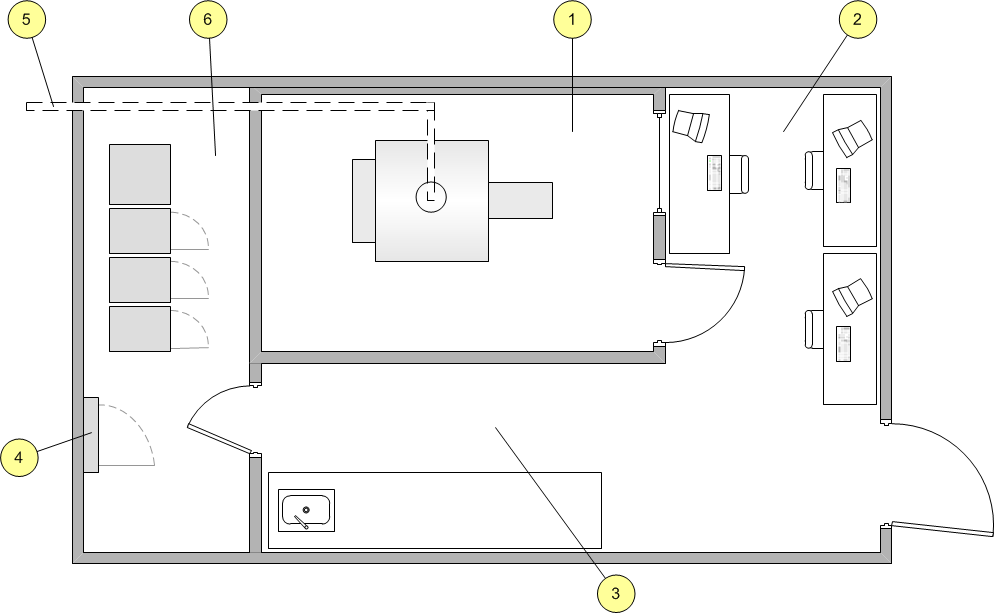

Schematic laboratory ground plan

Pos. No

Description

1

Magnet Room

2

Operating Area

3

Preparation Area

4

Electrical Power Distributor

5

Quench Line

6

Technical Room
