Specific Handling
Coil Mounting
- Mount the tune / match rods as well as the position rod.

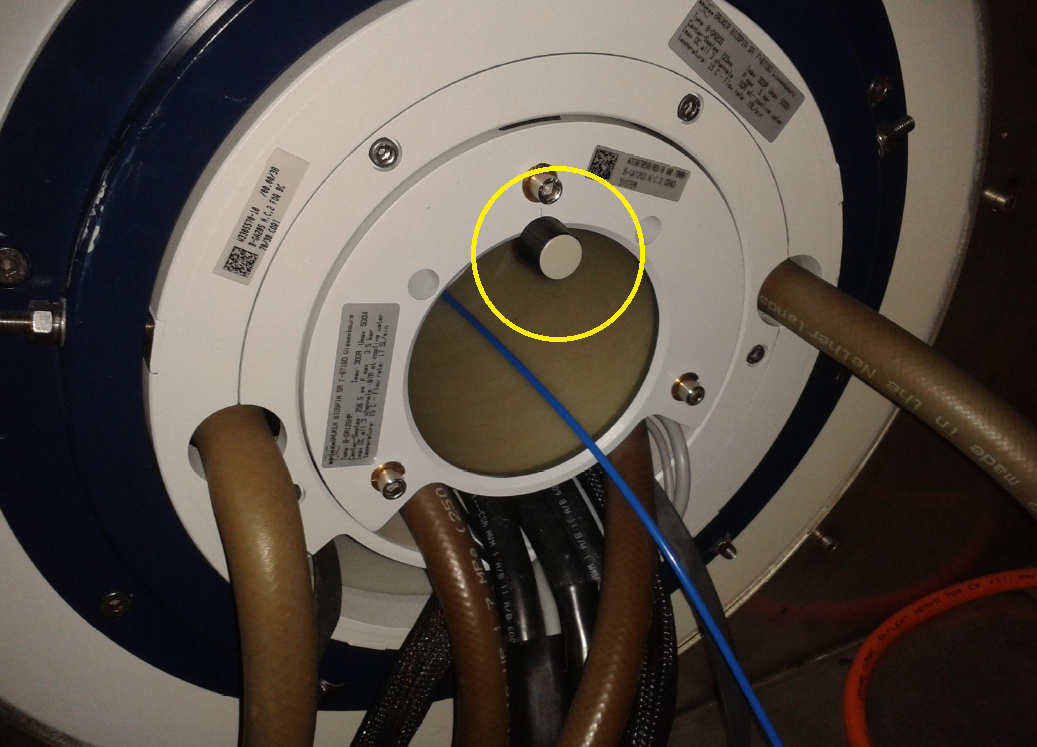

- In order to position the coil correctly in the magnet center, insert the coil from the service end of the magnet and push it until the position rod aligns with the end ring of the gradient and the knob of the rod stretches further out:
- Inflate the pneumatic fixation
Tune / Match
- Tune / match the transmit Volume Coil accordingly.
