Use can register new animal cradles to the scanner by providing suitable information files and attenuation data.
The information is stored in the directory <PV>/conf/bed/ in typical ParaVision data structures of processed images:

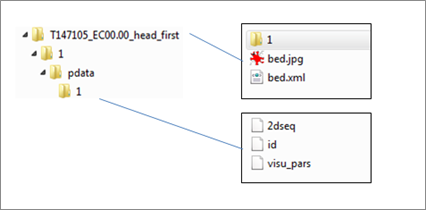

ParaVision data structure
- ▪
- 2dseq: this files contains the attenuation data as attenuation factors, 32bit float in Fortran-order (a.k.a. column-major order) in a sagittal orientation. The file size is described by the VISU parameter VisuCoreSize. Please refer to the ParaVision programming manual on the detailed file description of 2dseq files.
- ▪
- visu_pars: copy the file from an existing animal bed and change the values of the following VISU parameter
- –
- VisuCoreDataMax
- –
- VisuCoreDataMin
- –
- VisuCoreDataSlope
- –
- VisuCoreSize
- –
- VisuCoreExtent
- –
- VisuCoreFrameThickness
- –
- VisuCoreSlicePacksSliceDist
- –
- VisuCorePosition
- ▪
- bed.jpg: is a photo of the animal bed
- ▪
- bed.xml: is the xml description of the animal bed. Copy the file from an existing animal bed and change the values of the following xml parameter
- –
- animalBed displayName
- –
- shortDescription
