Animal CradlesMMPF Animal CradlesMMPF Cradle for Brain Surface RF CoilsHandling


Handling
Select the corresponding inlay and place it within the base cradle. Then, position the animal on the inlay within the cradle.

Base Cradle
 Brain-Cradle_labelled
Base Cradle with studs (7) to mount the surface coils and hoses for anesthesia supply and WAG removal.
7
Stud to place the Surface RF Coil.
8
Anesthesia supply hose with 90 deg. Luer connector.
9
WAG suction hose with straight Luer connector.

Rat Insert
 T169725_MMPF-Insert-Rat
1
Rat Inlay.
2
Tooth bar mouse with holes for anesthesia supply.
3
Screw to fix the tooth bar.

Mouse Insert
 T169724_MMPF-Insert-Mouse_labelled
4
Mouse Inlay.
5
Screw to fix the tooth bar.
6
Tooth bar mouse with holes for anesthesia supply.

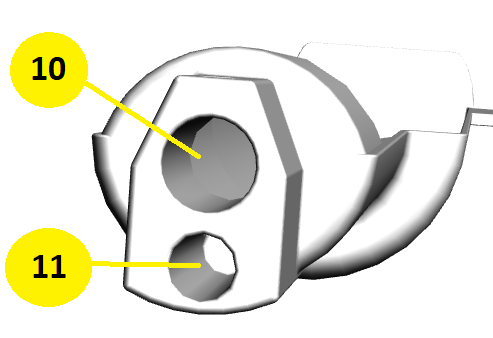

Anesthesia Mask
 Insert_WAG-connection_labelled
10
Hole for tooth bar.
11
Hole for WAG removal.
Waste Anesthetic Gas (WAG) removal can be achieved by connecting a removal hose and system (see Cradle Interface “Water” for a description „where to connect what“). Please note that a certain amount of WAG leakage always occurs into the surrounding so that the anesthesia safety information needs to be considered.
