Tune/match arrangement from 2015/2016 onward



The arrangement with the tuning/matching rods is to be inserted from the service end.

It contains:

  • rods to fixate the arrangement to the rear side of the CryoProbe™.
  • tuning and matching rods for each channel.
  • channel decoupling (do not turn).

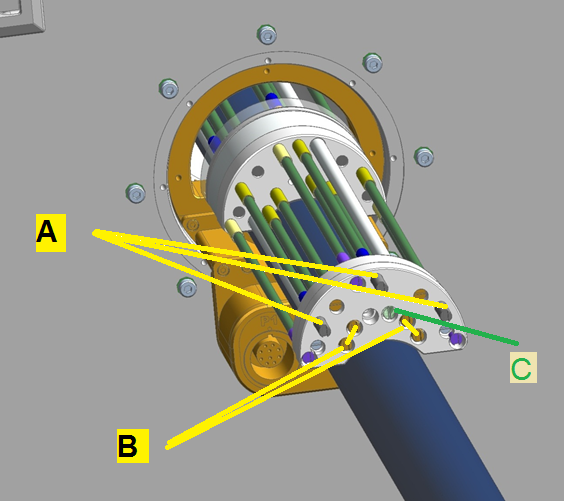

Tune/match arrangement: Rods to fixate the arrangement (A). Tune/match rids for each channel (B). Channel decoupling (C, green). The channel decoupling is adjusted in factory and must not be modified on site.





To install:

  • push the arrangement of rods carefully over the interconnection through the opening. The rods are to fit into the notches at the rear side of the CryoProbe™.
  • Screw the three silver-capped fixation rods to fixate the tuning and matching arrangement to the CryoProbe™ (green screw driver).

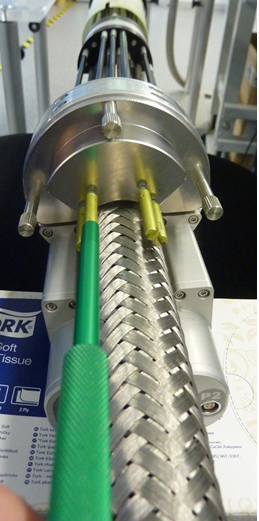

Fixation of the tune/match arrangement to the CryoProbe.





NOTE
The rods may be divided into two parts if the distance between filter box or CCM and the cabinet wall is too small to insert it in one piece. Use the delivered non-magnetic screwdriver to do so (see Figure Non-magnetic screwdriver (violet in B).).

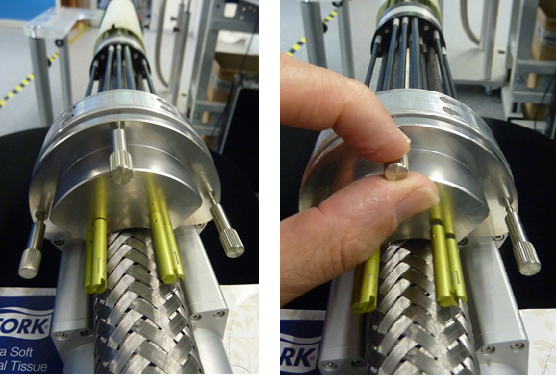

Non-magnetic screwdriver (violet in B).

(A) Hold the rod arrangement with one hand in the middle

(B) Use the supplied screwdriver to connect/divide the rod arrangement into two parts.





Cover Cap for installations with CCM:

When the tuning/matching arrangement is completely inserted and fixated to the CryoProbe™, a cover cap can be mounted to the CCM:

  • push the covering cap carefully over the tuning/matching assembly
  • use the silver colored bolts to tightened to the CryoProbe ring.



Cover cap mounting.

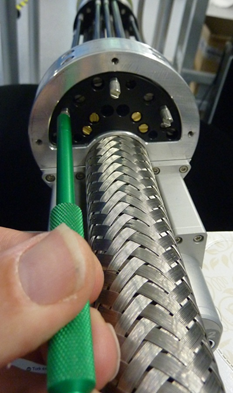

The golden colored rods are used for tuning and matching the CryoProbe™.They are marked with the letter ‘T’ for tuning and ‘M’ for matching. The subsequent number indicates the respective channel number (green screw driver).

Tune/Match rods.
