Using MASS
The Mobile Animal Support System (MASS) is a flexible manual animal positioning system compatible with BioSpec instruments with a 40 cm magnet bore. The positioning system consists of three principal units:
- The mobile animal support trolley with a stationary mounted slide rail.
- A positioning unit with a variety of cradles.
- A magnet mounted slide rail extension with a laser line light attached.
There are two basic versions of the positioning unit for alternating use:
- A large sliding carriage with a brake fixture including a push rod with ruler. The skateboard-like carriage is supporting a half-shell animal cradle suitable for larger animals like non-human primates (NHP).
- A small triangular sliding carriage with a brake fixture including a push rod with ruler. The standard AUTOPAC/MANPAC animal cradles can be attached to the triangular sliding carriage.
The corresponding animal positioning assembly part numbers are:
P/N | Name | Description |
|---|---|---|
H184473 | ANIMAL SUPPORT NHP TROLLEY LONG CPL | Mobile animal support trolley |
H183784 | ANIMAL SUP. NHP SCHLITTEN KPL | Large sliding carriage for large animals |
H180381 | ANIMAL SUPPORT NHP CRADLE ID=172 | Large Animal Cradle, ID = 170 mm |
H183711 | ANIMAL SUPPORT KTL | Small triangular sliding carriage |
H180525 | ANIMAL SUPPORT NHP MAG. MOUNTING BS70/40 | Slide rail extension with laser light |

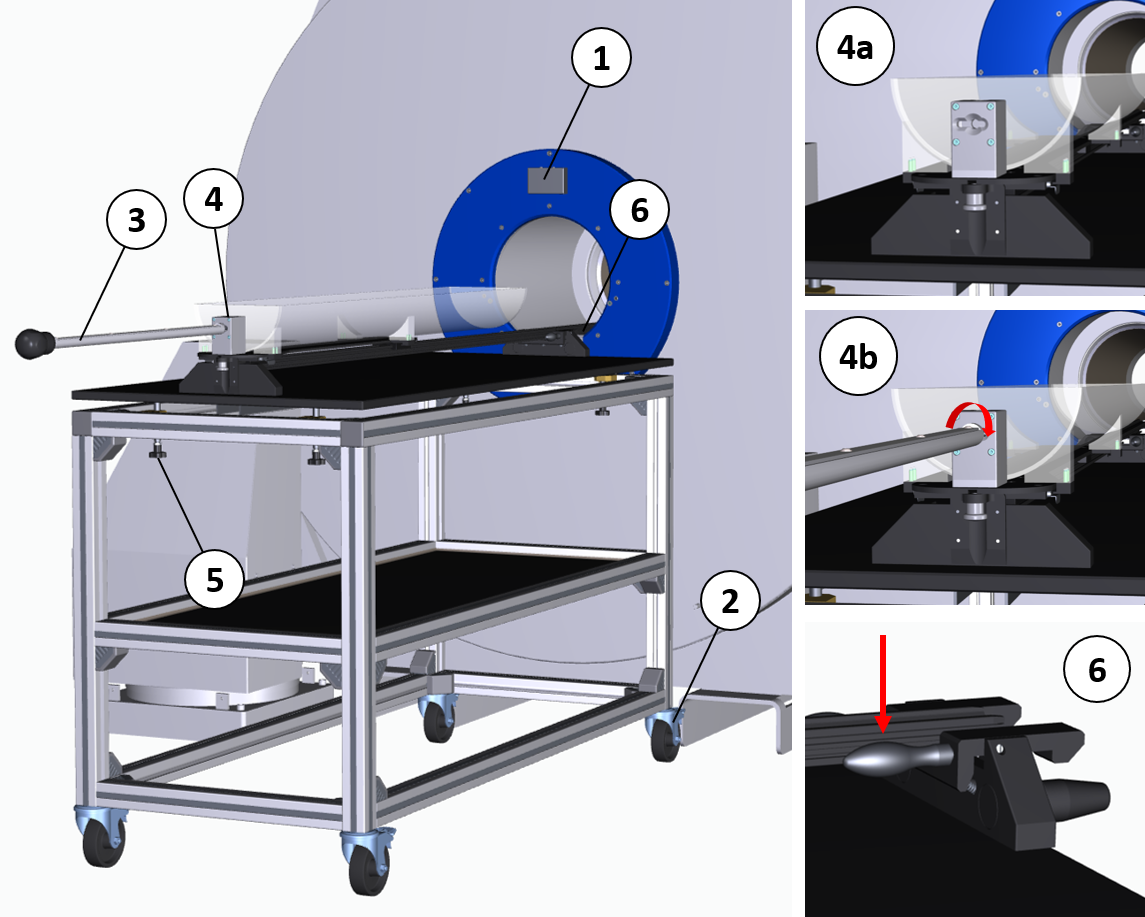

1 | Laser cross hair | 4a | Brake module |
2 | Caster with brake | 4b | Brake module with inserted push rod |
3 | Push rod with ruler | 5 | Trolley height adjustment screw |
4 | Brake | 6 | Trolley docking mechanism |
