Installing/Switching between Animal Cradle Types
Different animal cradle types for small and large animals can be mounted on the slide rail of the MASS using different types of sliding carriages.
The following combinations are possible:
Usage | MASS Accessory | Additional Adapter needed? | Compatible Animal Cradle |
|---|---|---|---|
Large Animals | MASS large sliding carriage incl. push rod (H183784) | none | Animal Cradles and RF Coils for Large Animals |
Small Animals | MASS small triangular sliding carriage incl. push rod (H184434) | none | AutoPac /ManPac Animal Cradles |
P/N T150743 | MMAC Animal Cradles |

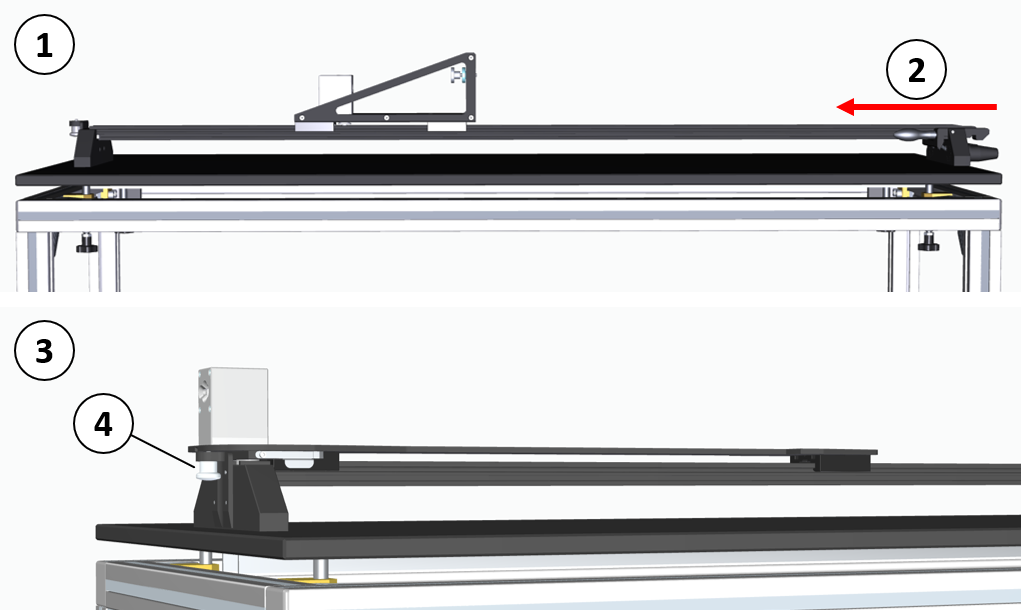

The small triangular (1) or large (3) sliding carriages are mounted on the slide rail of the trolley from the magnet-facing end of the trolley (2). The large sliding carriage (3) can be locked in position, e.g. when transporting the animal using the trolley (4).
Installation and usage of the animal cradles is described in:
- MASS Animal Cradles
- Autopac/ManPac Animal Cradles
- MMAC Animal Cradles
